Setup Video Guide WiFi Extender

STEP BY STEP INSTRUCTION

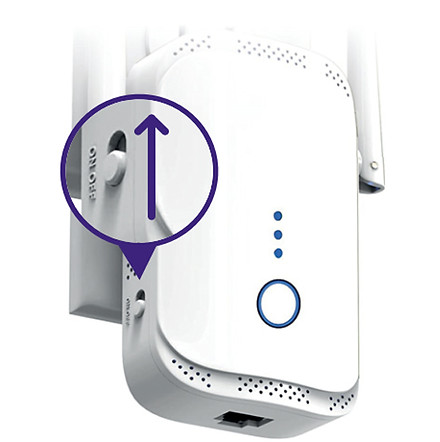

Plug the Extender into a power outlet near your existing Wi-Fi Router. Turn ON the Extender with an upward flick of the "ON/OFF" switch. The switch is on the left side of the device.

Open your mobile settings and turn off mobile data.

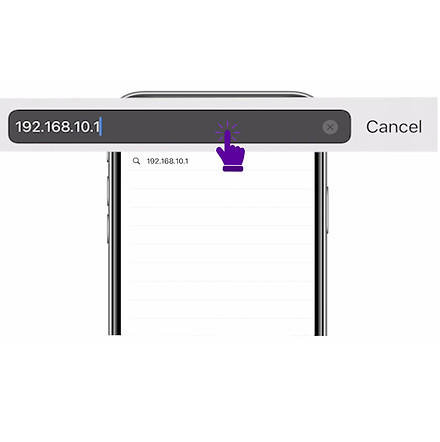

Open a web browser and input: 192.168.10.1

Wait 10 seconds. The system scans all networks.

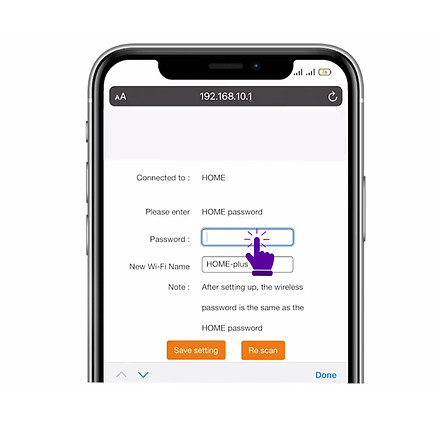

Type your Wi-Fi password into the Password box. Click the "Save Setting" button.

NOTE: The password remains the same as the existing Wi-Fi Router's password. It’s case-sensitive!

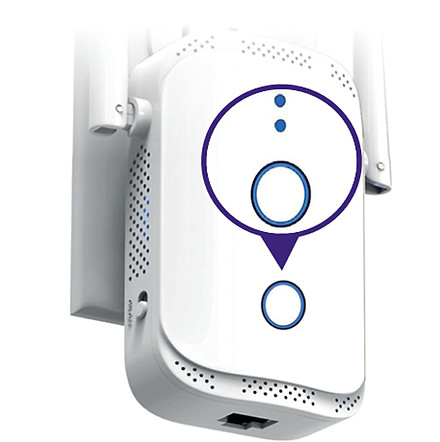

Activate the Extender by pressing the "RESET" button for 15 seconds. The Extender will reboot within 30 seconds.

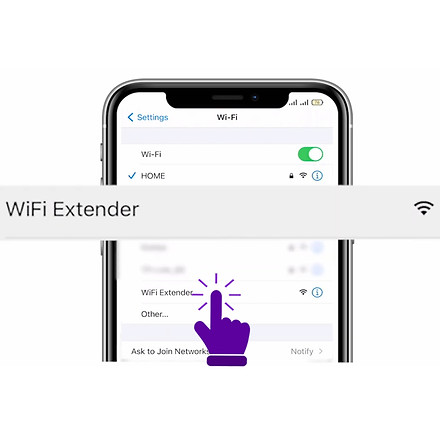

Go to your Phone settings. Open Wi-Fi, and turn it ON. Search for the network name “Wi-Fi Extender” and click on it to connect

Click "LOGIN".

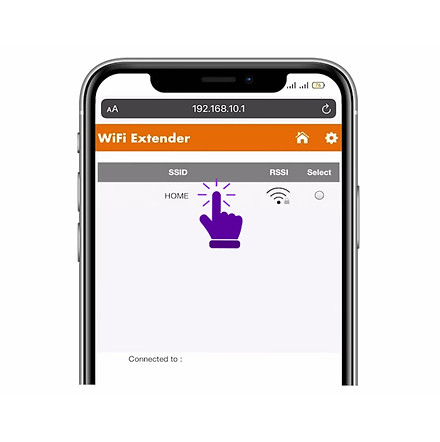

Click on the name of the existing Wi-Fi Network you want to extend, e.g., Home Wi-Fi.

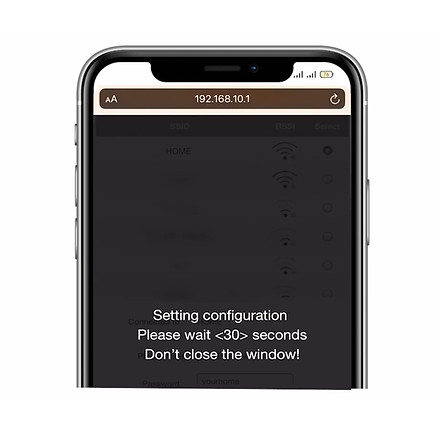

Wait 30 seconds! Once you complete the steps, your Extender reboots automatically. Place the Extender halfway between your Wi-Fi Router and the area with poor signal coverage.

I installed the Extender, but it not accepting my password.

Please reset your Extender and try to set up it one more time. If you have the same issue, please call to us, or send a message via online chat or via email
I tried to open your IP address, but it says no internet or page error.

Please open your Wi-Fi settings and check your network. You need to be connected to the Extender network, not to the main router or mobile internet network! You will have a “no internet” connection near the network “Wi-Fi Extender”, but it’s correct! Until you finish setup, the network will be without internet. NOTE: You can’t connect to the IP or site, when you have an internet connection because this is not an internet page, but the setting page of your Extender. REMEMBER! If you open a site and, after a few steps, someone asks for credit card information, please close this site and contact our support using phone, online chat, or email! We do not offer any additional payment service!
Does the Extender work with 5G?

No, the Extender only operates in the 2.4GHz band.
After I install the Extender, which area will be the best to have it?

The Extender should be halfway between the Wi-Fi Router and the area with poor signal coverage. The Extender must receive a good signal from the Wi-Fi Router.
When I’m connected to Wi-Fi Extender, it says no internet.

This issue you have is because of the wrong password. Even if you are sure about the correct password, please reset your device and set it up again. NOTE: Check your password a few times! It’s CASE-SENSITIVE! Many phones use a first capital letter as a default, so please check if all letters are the same as your main router password!
I can’t see Wi-Fi Extender in my network list.

Please press the RESET button (big button on the top of the device) for 15 seconds, and wait 30 seconds. Then check the network list one more time.
How do I reset the Extender?

To reset the extender, press the WPS button for 10-15 seconds to restore factory settings. The WiFi SSID of the wifi extender will be “Wi-Fi Extender” after restoring successfully. Then set up again from the beginning.
When I’m connected to WIFI Extender it says no internet.

You have this issue because of a mistake in your password. Please reset your device and setup it up again. Double-check the password! It's case-sensitive.
After I installed the Extender, which area will be the best to have it?

The recommended is between the main router and the area affected by the low signal.
Does the Extender work with 5g?

Yes, Extender work with 5G.
I tried to open your IP address but it says no internet or page error.

Make sure you are connected to the WIFI Extender network before open the IP.
Which device is recommended for installing the Extender?

The best way to set up the extender it’s using your phone.
How do I reset the Extender?

Use the included PIN TOOL to reset the Extender by pressing the RESET button for 10 seconds. The Extender will reboot within 1 minute.
I installed the Extender but is not accepting my password.

The extender is cap sensitive, please make sure during the installation to write down the password properly right.
Which device is recommendable to install the Extender?

Cellphone will be the easiest way to install the extender.

Anchor 1

Safety and Compliance Information

IMPORTANT PRODUCT INFORMATION

SAFETY INFORMATION

FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK, OR OTHER INJURY OR DAMAGE.

Maintaining Your Device

Do not expose your Device or adapter to liquids. If your Device or adapter gets wet, carefully unplug all cables without getting your hands wet and wait for the Device and adapter to dry completely before plugging them in again. Do not attempt to dry your Device or adapter with an external heat source, such as a microwave oven or a hair dryer. If the Device or adapter appear damaged, discontinue use immediately. Use only accessories supplied with the Device to power your Device. To avoid risk of electric shock, do not touch your Device or any wires connected to your Device during a lightning storm.

Only handle your Device with clean hands. Clean the Device with a soft cloth that is slightly damp with water and a touch of rubbing alcohol; be careful not to wipe it with anything abrasive or to use any harsh chemicals. Don't expose your Device to steam, extreme heat or cold. For example, do not install your Device near any heat sources such as space heaters, heater vents, radiators, stoves, or other things that produce heat.

Use of third-party accessories may impact your Device’s performance. In limited circumstances, use of third-party accessories may void your Device’s limited warranty. Read all safety instructions for any accessories before using with your Device.

Only use the included power adapter with your Device. Do not force the power adapter into a power outlet. If the power adapter or cable appears damaged, discontinue use immediately. Do not plug multiple electric devices into the same wall outlet. Overloading an outlet can cause it to overheat and may result in a fire.

Your Device may get warm during normal use. To reduce the effect of the warming, place your Device on a heat resistant surface.

Other Safety Considerations

Small parts contained in your Device and its accessories may present a choking hazard to small children.
For safety, compliance, and other information regarding any networking equipment or computer connected to your Device, please consult the user manual and other information provided by the manufacturer.
Install your power adapter into an easily accessible socket-outlet located near the equipment that will be plugged into or powered by the adapter.

Using Your Device Around Other Electronic Devices

Your Device generates, uses, and can radiate radio frequency (RF) energy and, if not used in accordance with its instructions, may cause interference to radio communications and electronic equipment. External RF signals may affect improperly installed or inadequately shielded electronic operating systems, entertainment systems, and personal medical devices. While most modern electronic equipment is shielded from external RF signals, if in doubt, check with the manufacturer. For personal medical devices (such as pacemakers and hearing aids), consult with your physician or the manufacturer to determine if they are adequately shielded from external RF signals.

FCC Compliance Statement

This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this Device may not cause harmful interference, and (2) this Device must accept any interference received, including interference that may cause undesired operation. For our return policy, warranty info, privacy policy, terms of service, and more, visit https://www.themacard.com/activate

The party responsible for FCC compliance is GLOBAL NETWORKING LABS PTE LTD,

176 joo chiat road 02-02, Singapore, 427447

FCC Guidelines for Human Exposure

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of [21 cm for Macard 5G WIFi Extender] between the radiator and your body.

FCC regulations restrict the operation of this device to indoor use only.

The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet.

Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems.

Note: This Product has been tested and found to comply with the limits for a Class B digital device or external switching power supply, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Pursuant to Section 15.21 of the FCC rules, changes or modifications to a Product by the user that are not expressly approved by the party responsible for compliance could make the Product no longer comply with the FCC Rules.

Information Regarding Exposure to Radio Frequency Energy

The output power of the radio technology used in the Products is below the radio frequency exposure limits set by the FCC. This Device should be installed and operated with a minimum distance of 22 cm between the radiator and your body.

The Device meets the FCC Radio Frequency Emission Guidelines and is certified with the FCC. Information on these Products is on file with the FCC and can be found by inputting such Product's FCC ID (which can be found on the bottom of the Device into the FCC ID Search at https://www.fcc.gov/oet/ea/fccid

Recycling Your Device Properly

In some areas, the disposal of certain electronic devices is regulated. Make sure you dispose of or recycle your Device in accordance with your local laws and regulations. For information about recycling your Device, go to amazon.com/devicesupport

Servicing Your Device

If your Device needs to be serviced, please contact eero Customer Support. Contact details can be found at https://support.eero.com

Faulty service may void the warranty.

Product Specifications

Device name: Macard 5G WIFi Extender

Model: MCD-01

Wifi connectivity

Dual-band wifi radios, simultaneous 2.4 GHz and 5 GHz, 2x2 MU-MIMO, beamforming, IEEE 802.11a/b/g/n/ac

Wired connectivity

Two auto-sensing gigabit ports for WAN and/or LAN connectivity

Processor, memory and storage

700 MHz quad-core processor, 512 MB RAM, and 4 GB flash storage

Network security and services

WPA2 encryption, Family Profiles, DHCP, IPv6, NAT, VPN passthrough, UPnP, port forwarding, and static IP

Smart home connectivity

Bluetooth Low Energy 5.0

Required for setup

Supported iOS or Android device and internet service (with cable or DSL modem, if required).

Electrical rating

100–240V AC, 50–60 Hz

Temperature rating

Operating: 0˚C–40˚C

Storage: -25˚C–60˚C

Operating humidity: 20%–90%, non–condensing

Operating altitude: <3000 m

Dimensions

3.9 in x 3.9 in x 2.4 in (97.8 mm x 97.8 mm x 59.9 mm)

Actual size and weight may vary by manufacturing process.
